1/4 HP BLOWER MOTOR
Laboratory Tools

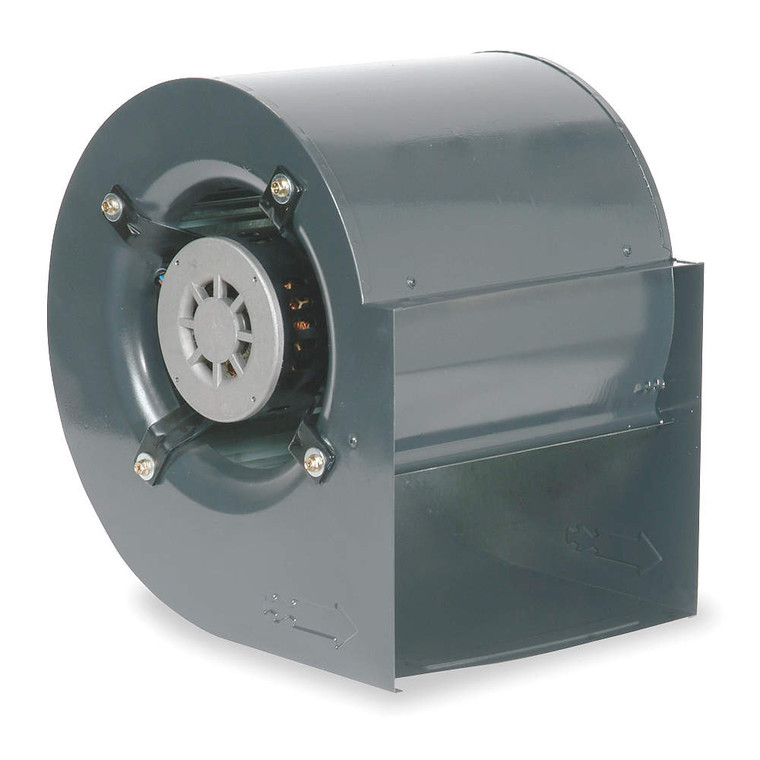

1/4 HP BLOWER MOTOR
Click to enlarge image(s)
This squirrel cage blower motor is used for 12x24 flow hood units.

TECHNICAL SPECS

  • ItemBlower with Motor
  • TypeDouble Inlet Forward Curve
  • Drive TypeDirect
  • Speed1
  • Wheel Dia.9-7/16"
  • Wheel Width (In.)9-7/16
  • CFM Range1457 to 715 @ 0.300-In SP to 0.900-In SP
  • CFM @ 0.000-In. SP#
  • CFM @ 0.300-In. SP1457
  • CFM @ 0.400-In. SP1340
  • CFM @ 0.500-In. SP1319
  • CFM @ 0.600-In. SP1301
  • CFM @ 0.700-In. SP1230
  • CFM @ 0.800-In. SP1117
  • CFM @ 0.900-In. SP715
  • Max. Inlet Temp. (Deg. F)104
  • Max. Ambient Temp. (F)104
  • Voltage115
  • Hz60
  • PhaseSingle
  • Full Load Amps4.9
  • Motor HP1/4
  • Motor RPM986
  • Motor TypePermanent Split Capacitor
  • Bearing TypeBall
  • Motor EnclosureOpen Dripproof
  • Housing Height (In.)15-9/32
  • Housing Width (In.)12-5/16
  • Housing Depth (In.)15
  • Discharge Height (In.)10-1/4
  • Discharge Width (In.)11-13/16
  • MountingMultipostion
  • Housing MaterialSteel
  • Housing FinishGray
  • Wheel MaterialSteel
  • Speed ControllableNo
  • Assembled/UnassembledAssembled
  • Agency ComplianceCE
  • Footnotes# Motor Overload Condition
