1/2 HP BLOWER MOTOR
Laboratory Tools

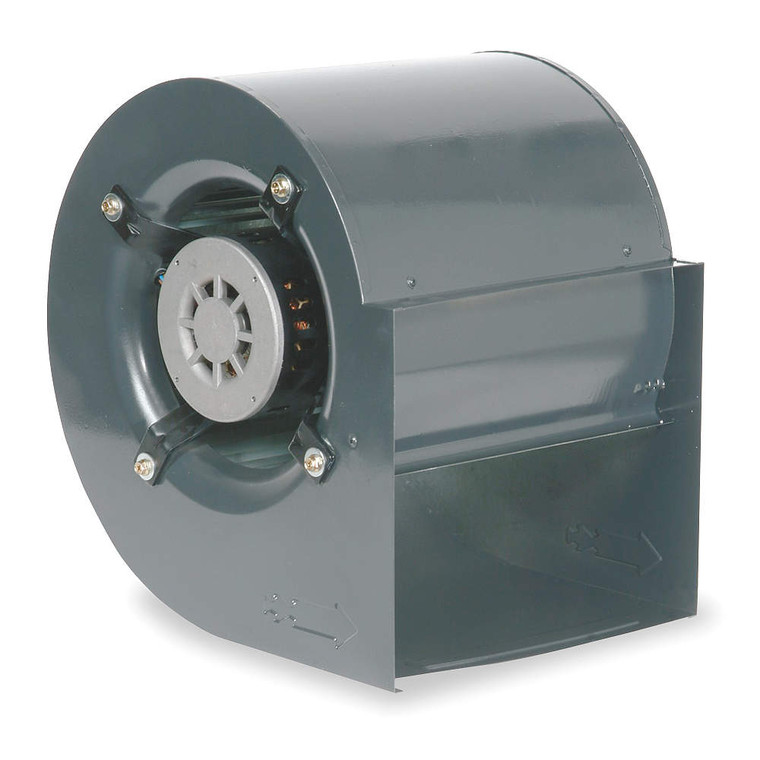

1/2 HP BLOWER MOTOR
Click to enlarge image(s)
This squirrel cage blower motor is used for 24x24 & 24x36 flow hood units.

TECHNICAL SPECS

  • ItemBlower with Motor
  • TypeDouble Inlet Forward Curve
  • Drive TypeDirect
  • Speed4
  • Wheel Dia.11"
  • Wheel Width (In.)7-13/16
  • CFM Range1857 to 622 @ 0.800-In SP to 1.25-In SP
  • CFM @ 0.000-In. SP# # # #
  • CFM @ 0.300-In. SP# # # #
  • CFM @ 0.400-In. SP# # # #
  • CFM @ 0.500-In. SP# # # #
  • CFM @ 0.600-In. SP# # # #
  • CFM @ 0.700-In. SP# # # #
  • CFM @ 0.800-In. SP1857 1706 1524 1327
  • CFM @ 0.900-In. SP1751 1632 1458 1279
  • CFM @ 1.000-In. SP1654 1546 1393 1162
  • CFM @ 1.10-In. SP1521 1381 1208 1049
  • CFM @ 1.200-In. SP1188 1033 925 846
  • CFM @ 1.250-In. SP938 863 841 622
  • CFM @ 1.30-In. SP- - - -
  • CFM @ 1.40-In. SP- - - -
  • CFM @ 1.500-In. SP- - - -
  • CFM @ 1.600-In. SP- - - -
  • CFM @ 1.70-In. SP- - - -
  • CFM @ 1.80-In. SP- - - -
  • Max. Inlet Temp. (Deg. F)104
  • Max. Ambient Temp. (F)104
  • Voltage115
  • Hz60
  • PhaseSingle
  • Full Load Amps9.0
  • Motor HP1/2
  • Motor RPM10601035989946
  • Motor TypePermanent Split Capacitor
  • Bearing TypeBall
  • Motor EnclosureOpen Dripproof
  • Housing Height (In.)17-5/16
  • Housing Width (In.)11-1/2
  • Housing Depth (In.)16-9/16
  • Discharge Height (In.)11-3/8
  • Discharge Width (In.)10-1/2
  • MountingMultipostion
  • Housing MaterialSteel
  • Housing FinishGray
  • Wheel MaterialSteel
  • Speed ControllableNo
  • Assembled/UnassembledAssembled
  • Agency ComplianceCE
  • Footnotes# Motor Overload Condition
